Infrared Photo Effect - Photoshop Tutorial ~ Photoshop Tutorial

Written by Steve Patterson. In this Photoshop Effects tutorial, were going to learn how to simulate the look of infrared photography in Photoshop. Well be taking a look at Photoshops Channels palette and seeing how to isolate a color channel as well as how to apply filters to color channels, well be using adjustment layers, specifically the Channel Mixer adjustment layer to adjust how much impact each individual channel has on the image, well be using a few different layer blend modes, adding some noise, and at the end, seeing how to bring some of the color from the original image back into the effect.

The term infrared literally means below red, and without getting into science or color theory, that means we as human beings cant see it. Yet even though you and I cant see infrared light, most digital cameras can, and with the use of an infrared lens filter, infrared photography can bring that light within our visible range, capturing and creating images that have a truly unique, mysterious and otherworldly look to them. Fortunately, this same look can be created quite easily in Photoshop, as well see in this tutorial. Since different objects in the world reflect different amounts of infrared light, the results you get with this effect will depend a lot on which type of photo youre using it with. Outdoor scenes with lots of green trees and foilage tend to work best, and thats what Ill be using for this tutorial, but try it out with other types of photos as well to see what you get.

Heres the original image Ill be using for this tutorial:

And heres the finished effect:

Lets get started!

Step 1: Duplicate The Background Layer

With my photo open in Photoshop, I currently have one layer in my Layers palette, the Background layer, which contains my original image:

The Background layer in Photoshop's Layers palette

Photoshops Layers palette showing the Background layer containing my original image.

The first thing I need to do in creating this effect is to duplicate this layer, and Ill do that with the keyboard shortcut, Ctrl+J (Win) / Command+J (Mac), which tells Photoshop to give me a copy of this layer directly above it:

Photoshops Layers palette now showing the copy of my Background layer directly above it, which Photoshop has named Layer 1.

Photoshop automatically names the layer Layer 1, which tells me nothing about it, so Im going to double-click directly on the name of the layer and rename it to infrared:

Double-click on the name Layer 1 and change it to infrared.

Step 2: Select The Green Channel In The Channels Palette

Go to your Channels palette (its grouped in beside the Layers palette) and click on the Green channel to select it:

Click on the Green channel in the Channels palette to select it.

This will turn your image temporarily black and white:

The image showing only the green color information

The image turns black and white temporarily.

If you dont understand yet how channels in Photoshop work, it may seem odd that when you selected the green color channel in the Channels palette, the image turned black and white instead of, well, green. We wont get into the details here of how channels work, since that would take an entire tutorial on its own, but what youre seeing here is in fact the green color information in the image, not as you and I see it but as Photoshop sees it, since Photoshop sees everything as either black, white, or some shade of gray in between. If that makes little sense to you, dont worry, you dont need to understand it to create this effect. Simply knowing to click on the green channel in the Channels palette to select it is enough.

Were going to blur this green channel next.

Step 3: Apply The Gaussian Blur Filter To The Green Channel

With the Green channel selected in the Channels palette, go up to the Filter menu at the top of the screen, select Blur, and then select Gaussian Blur to bring up Photoshops Gaussian Blur dialog box:

Go to Filter > Blur > Gaussian Blur to bring up the Gaussian Blur dialog box.

Drag the slider bar at the bottom of the Gaussian Blur dialog box left or right to increase or decrease the amount of blur youll be applying. Im using a low-resolution image for this tutorial since its for the web, and for me, a Radius value of about 4.5 pixels gives me a nice soft blur effect. Your image will most likely be much higher resolution, especially if it came from a fairly recent digital camera, so youll need to use a higher Radius value. Add a good amount of blurring while still being able to make out the basic details of the image, as Ive done here:

The image with Gaussian Blur applied to the Green channel.

The image after applying Gaussian Blur to the Green channel.

Click OK when youre done to exit out of the Gaussian Blur filter.

Step 4: Change The Blend Mode Of The Infrared Layer To Screen

Now that weve applied the Gaussian Blur filter to the Green channel, switch back to the Layers palette and, with the infrared layer still selected, change the blend mode of the layer from Normal to Screen. To do that, go up to the top of the Layers palette and click on the down-pointing arrow directly to the right of the word Normal, which brings up a list of available layer blend modes. Click on Screen to select it:

Selecting the Screen blend mode in Photoshop's Layers palette

Change the blend mode of the infrared layer from Normal to Screen.

Heres my image after changing the infrared layer blend mode to Screen:

The image after changing the layer blend mode to Screen

The image after changing the blend mode of the infrared layer to Screen.

Already at this stage, the image is looking pretty cool, but were not quite done yet. Were going to be using a Channel Mixer adjustment layer next.

Step 5: Add A Channel Mixer Adjustment Layer

We need to bring up a Channel Mixer adjustment layer at this point, and we can do that by clicking on the New Adjustment Layer icon at the bottom of the Layers palette and selecting Channel Mixer from the list:

Selecting Channel Mixer from the list of adjustment layers

Click the New Adjustment Layer icon at the bottom of the Layers palette and select Channel Mixer.

This brings up the Channel Mixer dialog box:

The Channel Mixer adjustment layers dialog box.

Ive circled in red the options we need to change. In the Source Channels section, set Red to -50%, Green to 200%, and Blue to the same as red, -50%. The general rule with these values in the Channel Mixer is that you want to keep the total value of all three channels at 100%, otherwise youll either be losing contrast in the image or losing detail in the highlights, which is why, in order to set the Green value to 200%, we lowered both the Red and Blue values to -50%, giving us our 100%. Again, not something you need to know. I just like to toss these things out there.

Finally, click the Monochrome checkbox in the bottom left corner of the dialog box to keep the image in grayscale mode. Click OK when youre done.

Heres my image with the Channel Mixer adjustment layer applied:

The image with the Channel Mixer applied.

The image after applying the Channel Mixer.

Step 6: Lower The Opacity Of The Infrared Layer

At this point, the infrared effect is too intense. Lets reduce it by lowering the opacity of the infrared layer. First, click on the infrared layer in the Layers palette to select it, then go up to the Opacity option in the top right corner of the Layers palette, hover your mouse directly over the word Opacity to turn your mouse cursor into the scrubby slider icon, then click and drag to the left to lower the opacity value:

Lower the opacity value of the infrared layer to reduce the effect.

Youll probably have to reduce the opacity quite a bit. Ive reduced mine to 35% in the screenshot above.

Heres my result:

The image after lowering the opacity value of the infrared layer

The image after reducing the infrared effect.

The effect is pretty much complete at this point, but its too clean. Infrared photos typically have a lot of grain in them, so to finish off the effect, were going to add some noise.

Step 7: Add A New Layer Above The Channel Mixer Adjustment Layer

Click on the Channel Mixer adjustment layer in the Layers palette to select it, then use the keyboard shortcut Shift+Ctrl+N (Win) / Shift+Command+N (Mac) to bring up Photoshops New Layer dialog box:

Use the keyboard shortcut to bring up the New Layer dialog box.

Name the new layer grain as Ive done in the screenshot above, and then click OK. Photoshop will add a new blank layer named grain above the Channel Mixer in the Layers palette:

The new 'grain' layer added in the Layers palette.

The Layers palette showing the new grain layer at the top.

Step 8: Fill The Grain Layer With White

Press the letter D on your keyboard to reset Photoshops foreground and background colors to their defaults of black and white, respectively. Then, with the grain layer selected in the Layers palette, use the keyboard shortcut Ctrl+Backspace (Win) / Command+Delete (Mac) to quickly fill this layer with solid white. The image in the document window will temporarily be hidden from view:

Filling the grain layer with white temporarily hides the image from view.

Step 9: Add Noise To This Layer

With the grain layer still selected, go up to the Filter menu at the top of the screen, select Noise, and then select Add Noise to bring up the Add Noise filter dialog box:

Select Filter > Noise > Add Noise to bring up the Add Noise filters dialog box.

As circled in red above, set the Amount to 20%, set Distribution to Uniform, and make sure Monochromatic at the bottom is checked.

This adds our grain to the image, but problem is, we still cant see the image below the grain. Well fix that next:

The solid white layer is now filled with noise to create the grain effect, but its still blocking the image below from view.

Step 10: Change The Blend Mode Of The Grain Layer To Multiply

Just as we did for the infrared layer, were going to change the blend mode of this grain layer, except this time, instead of changing it to Screen, were going to change it to Multiply. With the grain layer selected, go back up to the blend mode options at the top of the Layers palette and this time choose Multiply from the list:

Changing the grain layer's blend mode to Multiply

Change the grain layers blend mode from Normal to Multiply

As soon as we change the blend mode to Multiply, the image becomes visible once again through the grain, giving us our final effect:

Setting the blend mode of the grain layer to Multiply gives us our final infrared effect.

If you find youve added too much grain to the image, simply lower the opacity of the grain layer to reduce the amount.

Theres one more thing we could do here with our image, and thats to bring back some of the original color. You can of course leave it as is if you want, but if you want to bring back some color, heres how.

Step 11: Duplicate The Background Layer Once Again

Click on the Background layer in the Layers palette to select it, then once again use the keyboard shortcut Ctrl+J (Win) / Command+J (Mac) to duplicate it. Since you should always be in the habit of naming your layers, Ill rename this layer to colorize:

With the Background layer selected, press Ctrl+J (Win) / Command+J (Mac) to duplicate the Background layer once again, then rename it to colorize.

Step 12: Drag The Colorize Layer Up Between The Channel Mixer and Grain Layers

Next, click on the colorize layer and drag it up between the Channel Mixer adjustment layer and the grain layer. Youll see the line dividing the two layers highlight as you get close to it. Release your mouse at that point to drop the layer into place:

The colorize layer now moved in the Layers palette

Click and drag the colorize layer between the Channel Mixer adjustment layer and the grain layer.

Step 13: Change The Blend Mode To Overlay And Lower The Opacity To 50%

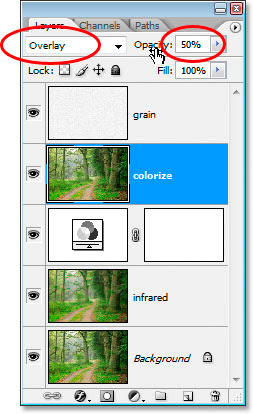

Finally, change the blend mode of the colorize layer from Normal to Overlay and then lower the opacity of the layer to 50%:

Set the colorize layers blend mode to Overlay and lower the opacity to 50%.

And were done! Weve brought some of the original color back into the effect.

Heres the image as it was back before we started:

The original image once again for comparison.

And heres the final result:

The final result.

And there we have it! Thats how to create an infrared photo effect with Photoshop!
